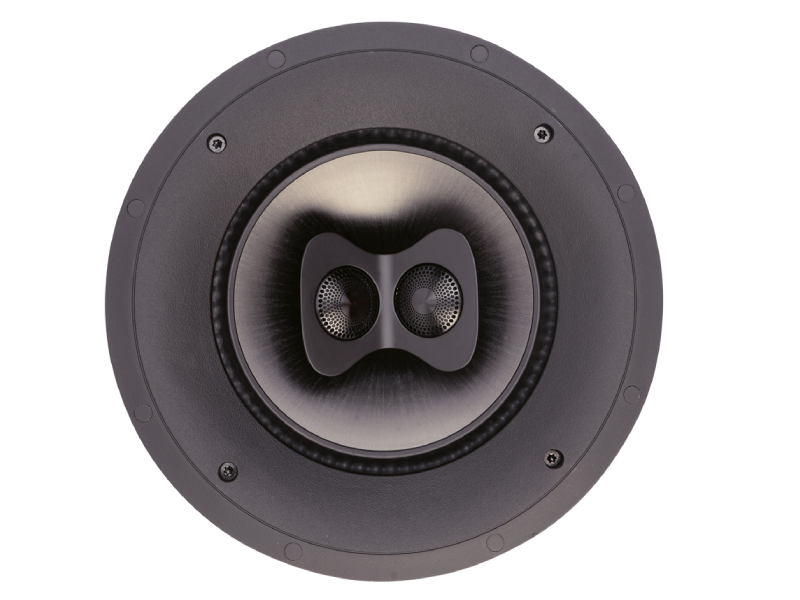

Paradigm 8 Inch Round In-Ceiling Speaker with Dual-Directional Soundfield - CI Pro P80-SM v2
$599.99 CAD / Each |

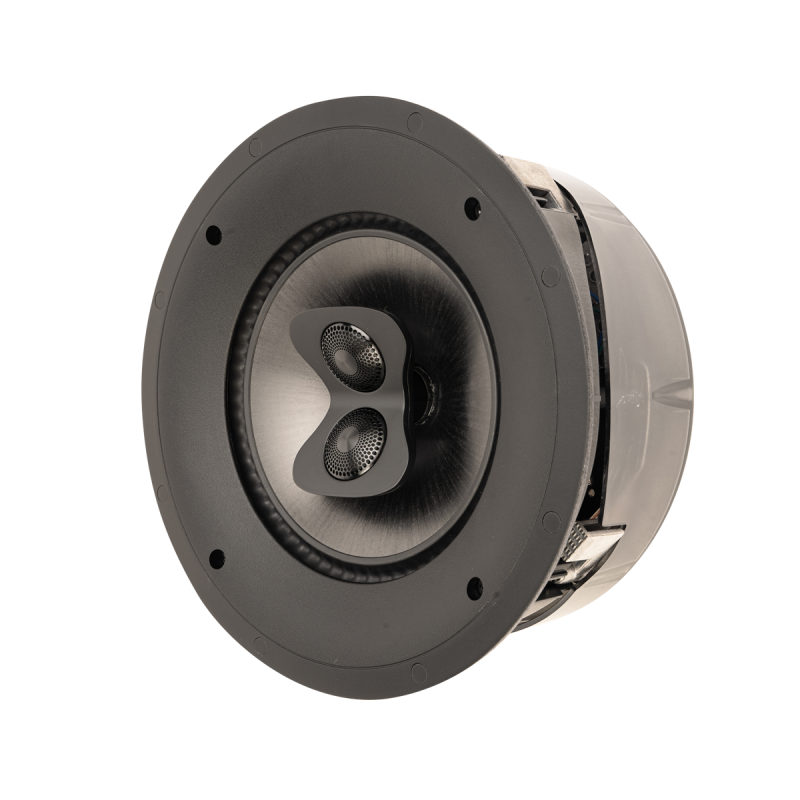

Paradigm 8 Inch Round In-Ceiling Speaker with Dual-Directional Soundfield - CI Pro P80-SM v2
CI Pro P80-SM v2
The Custom Installer's Smarter Choice.The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

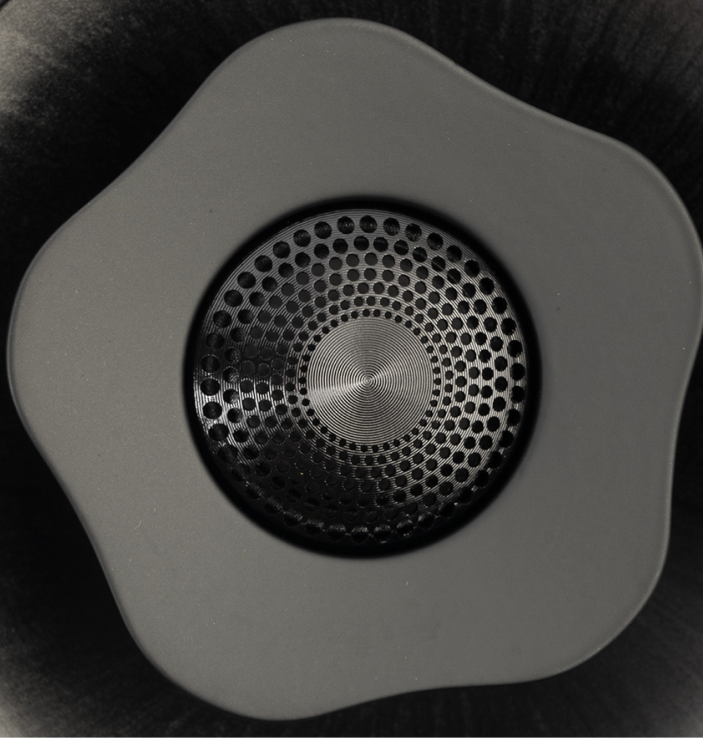

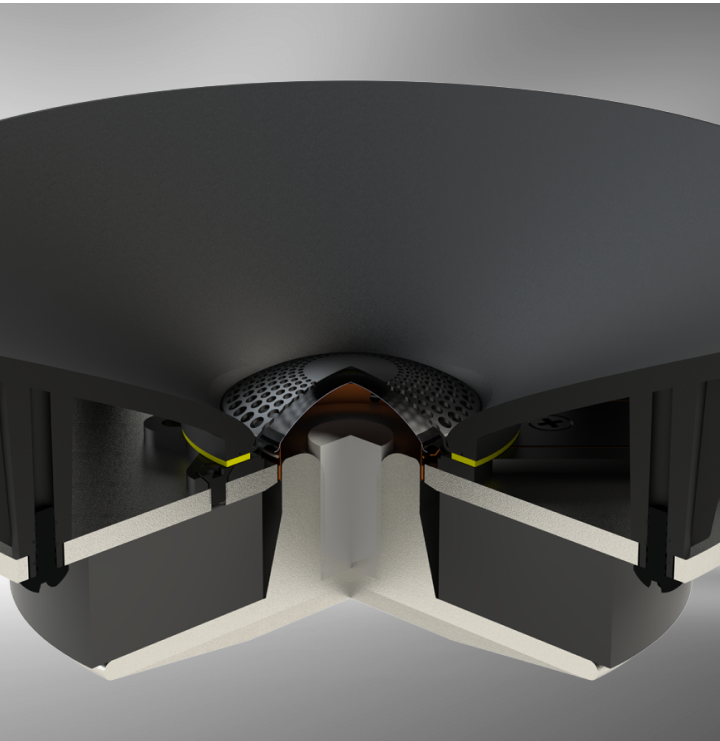

Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn't just sound good "on paper" but truly sounds incredible in the real world.

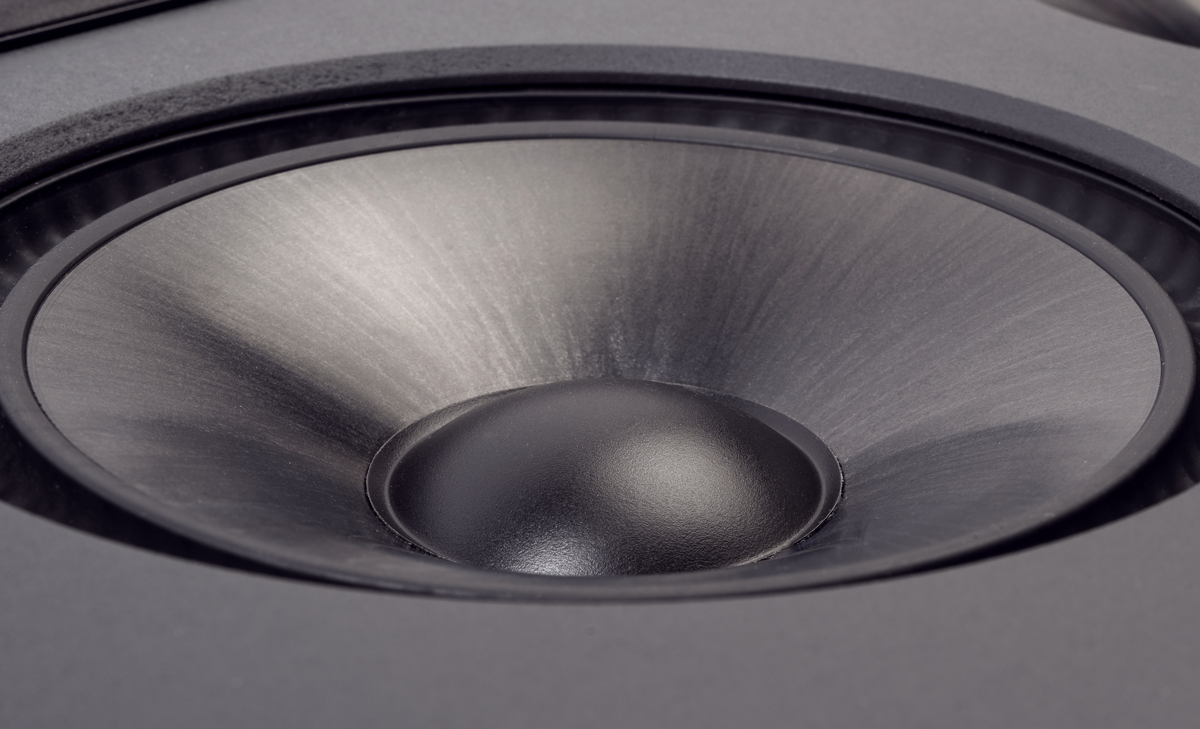

CARBON-X™ Cones
Paradigm's exclusive CARBON-X™ Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

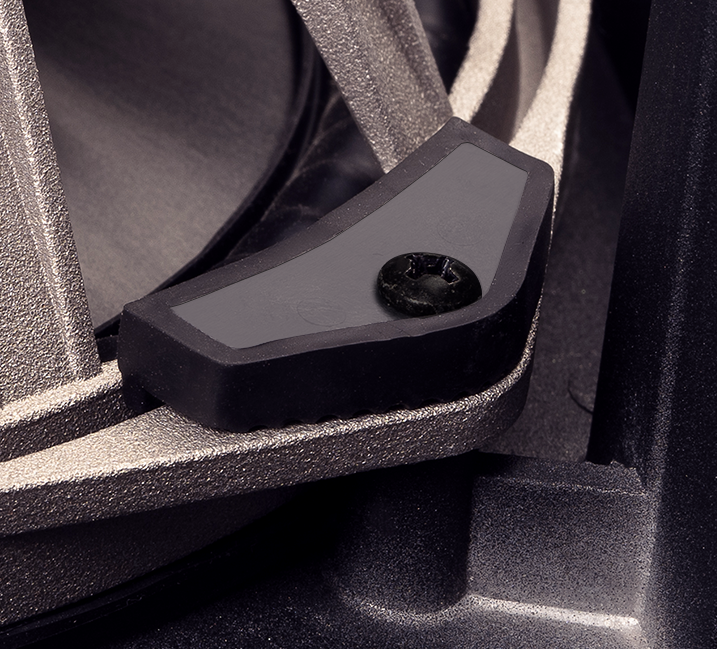

Advanced Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

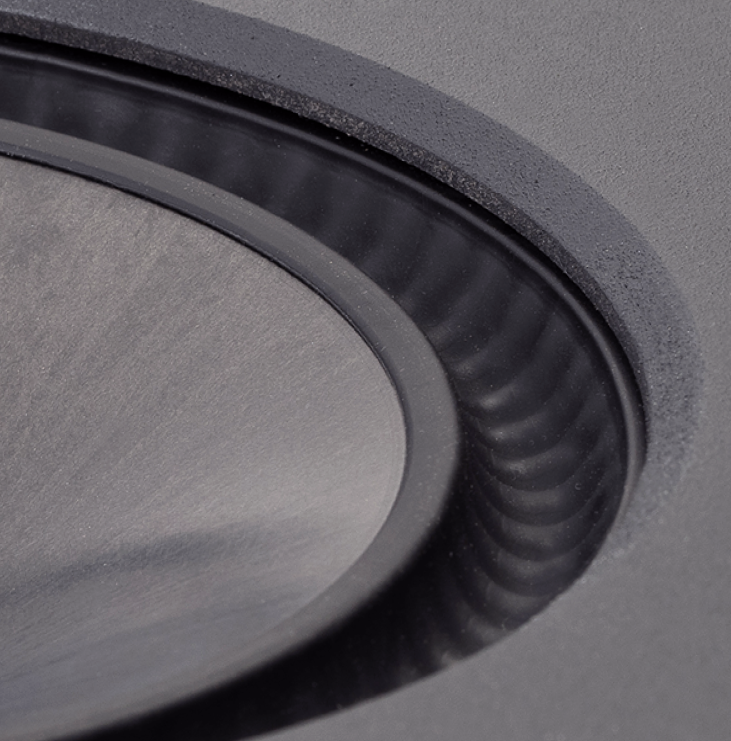

Patented Active Ridge Technology (ART™) surrounds
Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. US patents: D654,479S and 8,340,340B2.
Advanced Features for a Solid and Secure Installation

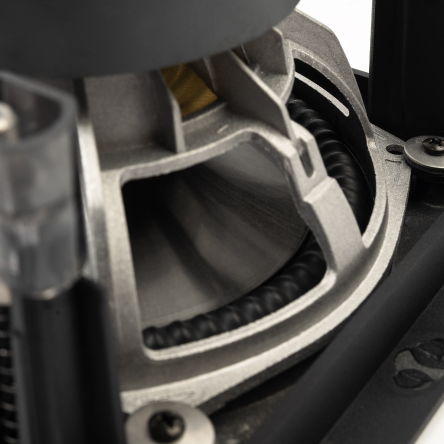

FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

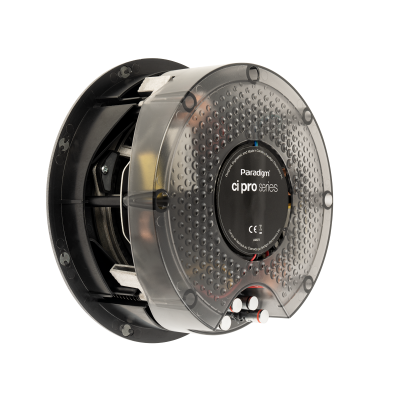

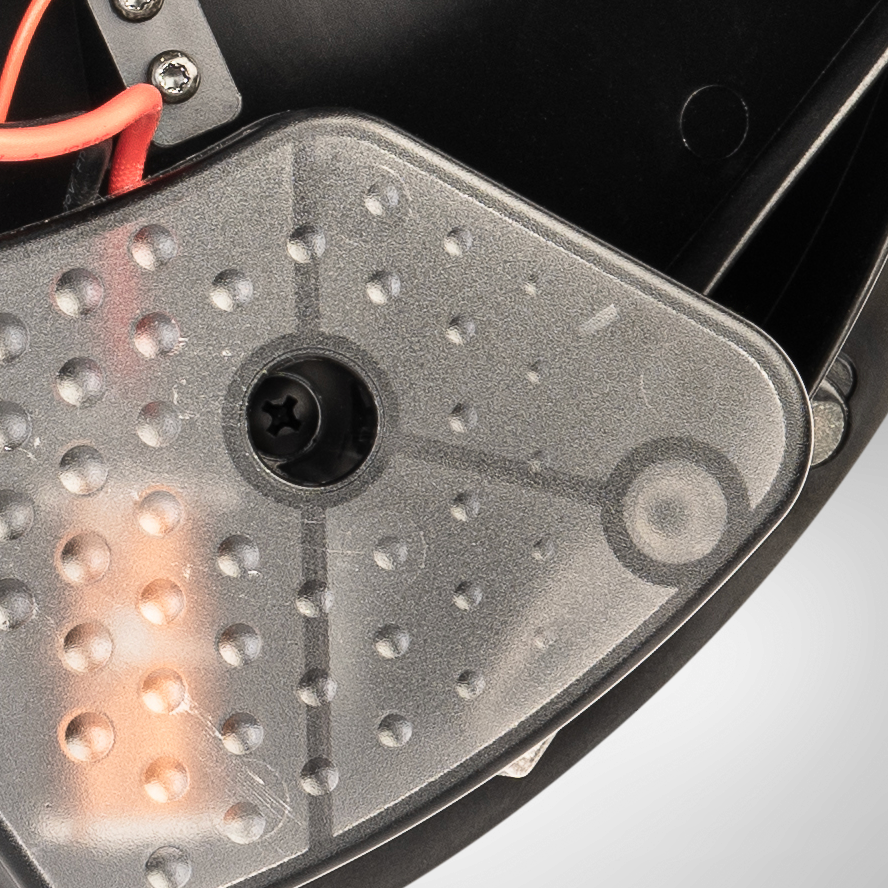

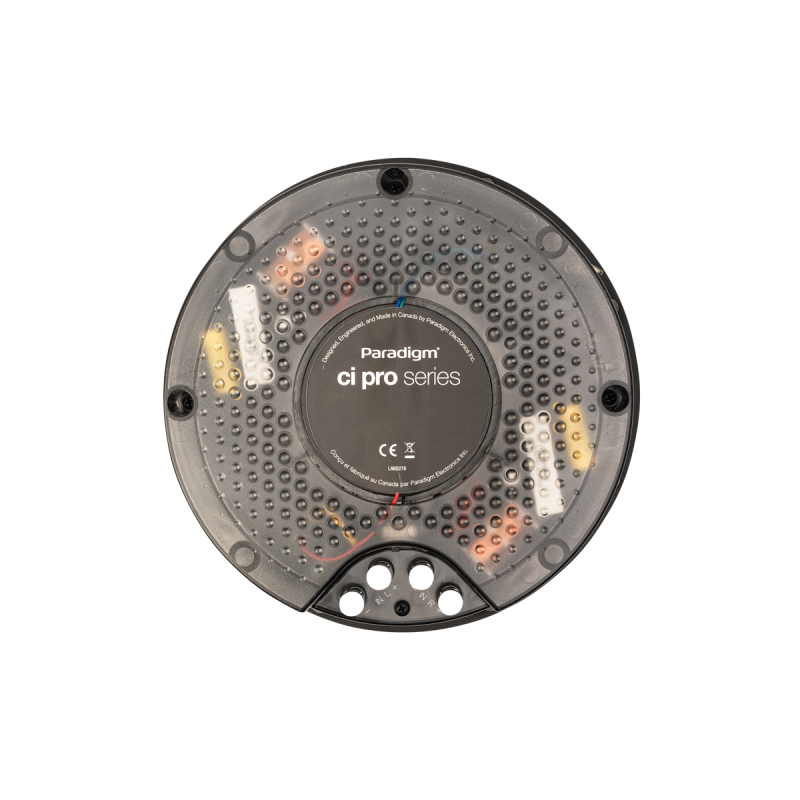

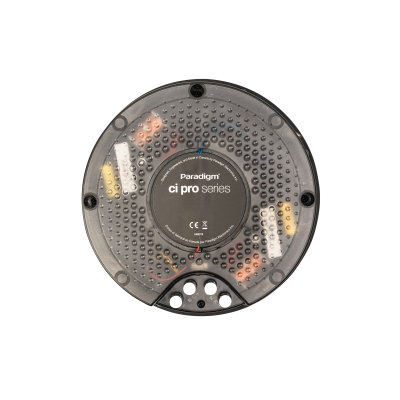

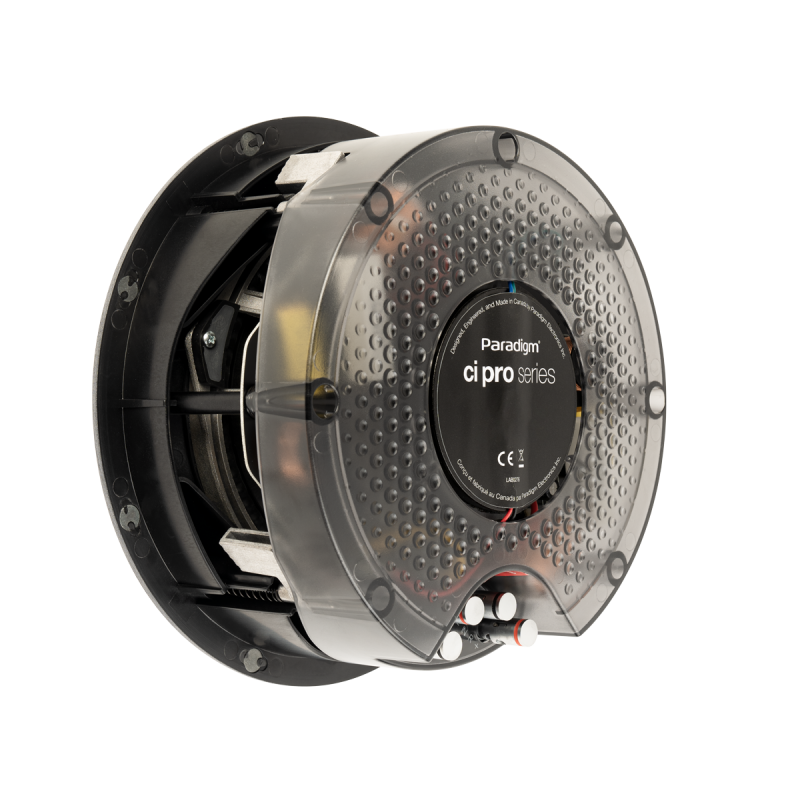

Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.

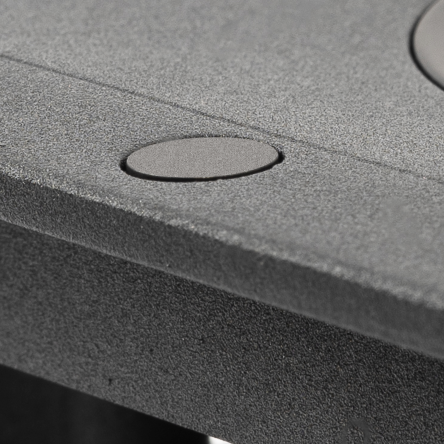

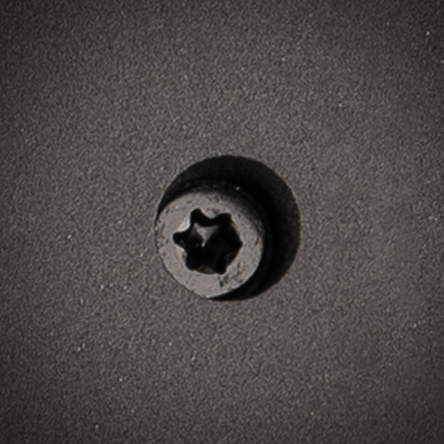

Pocketed screw holes help to hold the drill steady, making installation a snap.

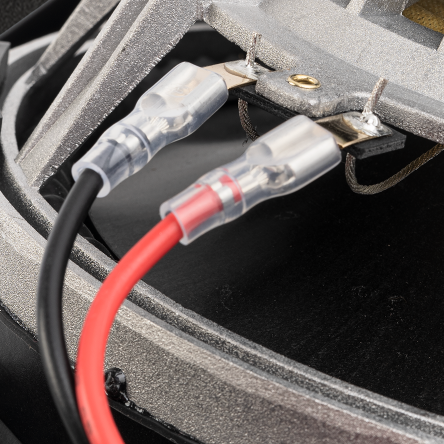

Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors.

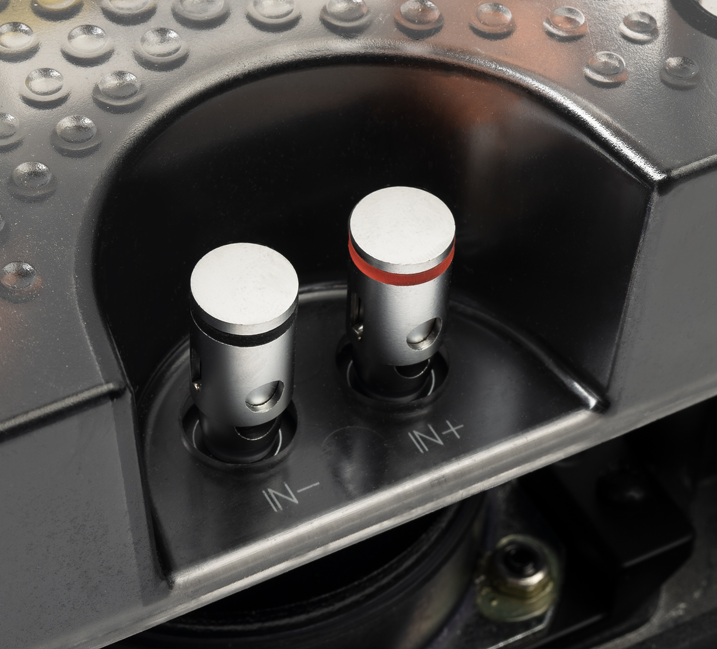

Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

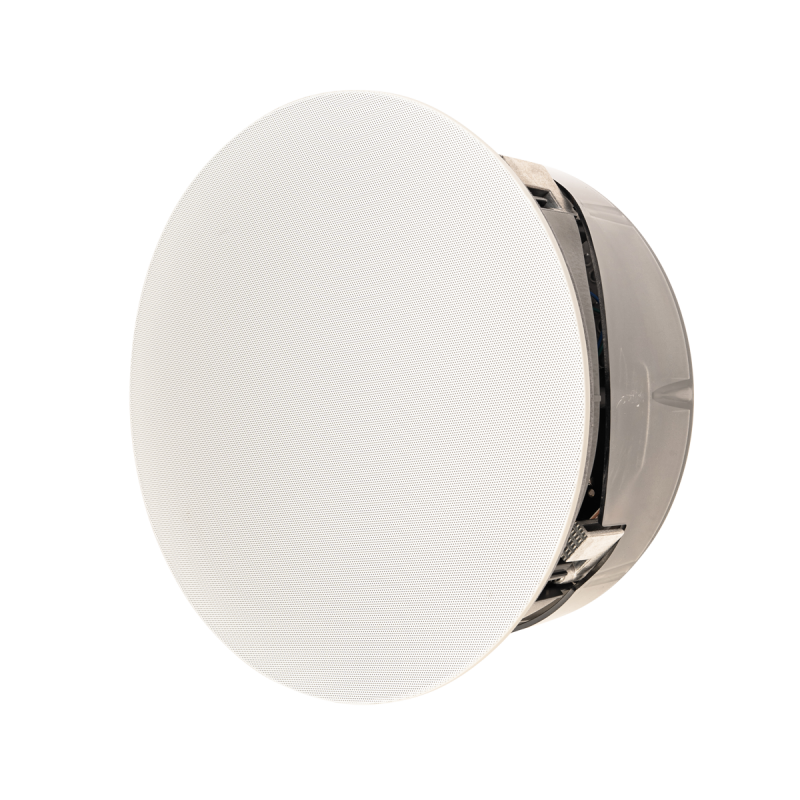

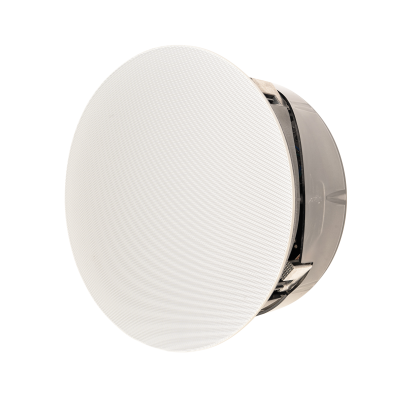

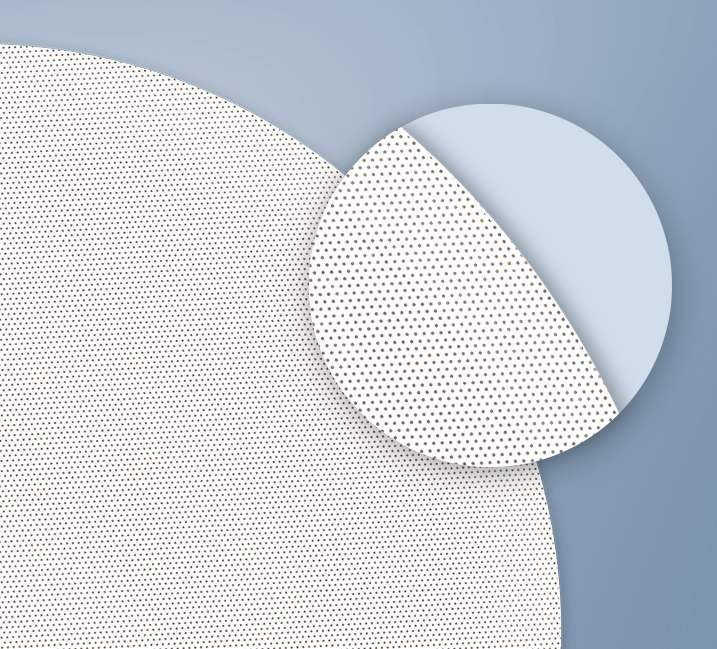

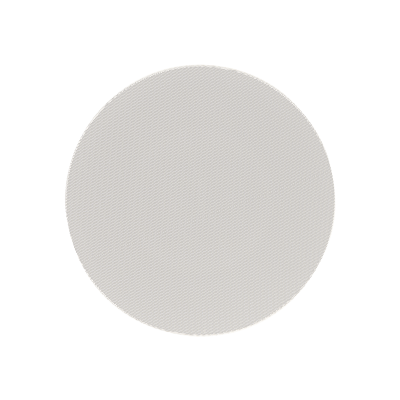

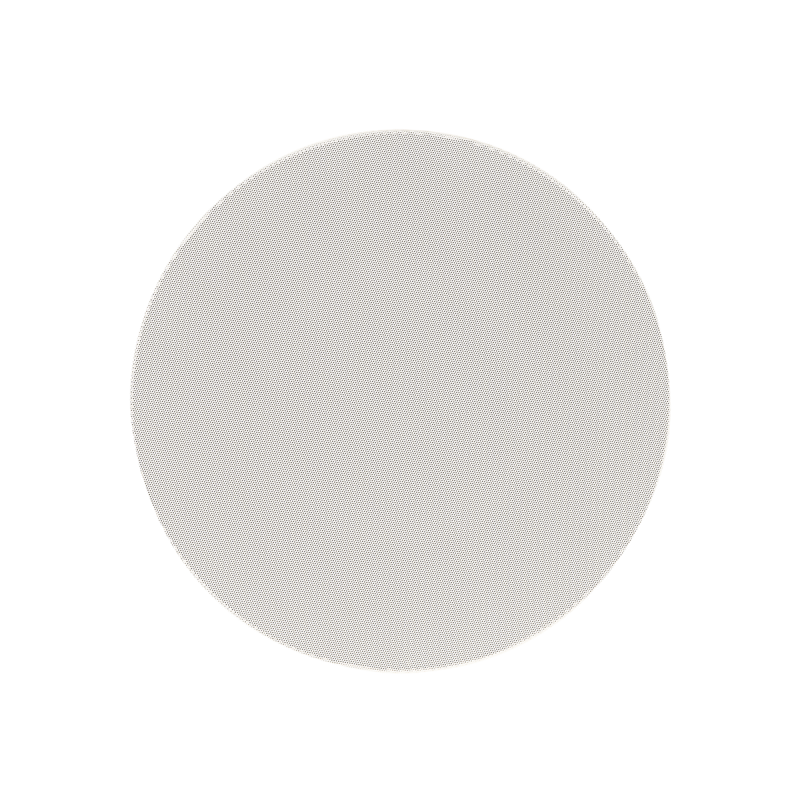

Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.
Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
Specifications | |
---|---|
DESIGN | 3-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT™ System, Nylon Reinforced Baffle |
CROSSOVER | 2nd-order electro- acoustic at 2.5 kHz |
FREQUENCY RESPONSE ON-AXIS | ±3 dB from 64 Hz - 22 kHz |
HIGH FREQUENCY DRIVER | Two 1" (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
MID/BASS FREQUENCY DRIVER | 8" (20.3cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets |
LOW FREQUENCY EXTENSION | 40 Hz |
SENSITIVITY ROOM / ANECHOIC | 92.5 dB / 88.5 dB |
FREQUENCY RESPONSE 30° OFF-AXIS | ±3 dB from 64 Hz - 18 kHz |
SUITABLE AMPLIFIER POWER RANGE | 15-110 W Mono; 15-55 W / channel Stereo Input |
MAXIMUM INPUT POWER | 100 W Mono / 50 W Stereo |
IMPEDANCE | Compatible with 8 ohms |
WEIGHT | 7.0 lbs (3.2 kg) |
FINISHES | White, paintable grille, black speaker |
CUT-OUT DIMENSIONS | 9-3/16" (23.4cm) dia. |
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 3-7/8" (9.8cm) |
DIMENSIONS HXWXD (INCLUDES GRILLE). | 10-1/4" (diameter) x 4-1/2" (depth) (26.1cm x 11.4cm) |
