Fusion External Media Base - MS-UNIDOCK



Availability
Call for availability

Literature

UNI-Dock™

Technology moves quickly, and it can seem like manufacturers are forever shifting the goalposts. Fusion have come to the rescue with the innovative Marine UNI-Dock™ (MS-UNIDOCK).

The revolutionary UNI-Dock™ supports the widest array of smart phones, media players and USB devices on the market. Compatible with Fusion’s innovative MS-AV650, MS-AV750, MS-AV755, MS-RA70, MS-RA70N, MS-BB100, MS-BB300, MS-AV700, MS-AV700i, MS-IP700i and MS-RA205, the new UNI-Dock™ allows users to enjoy on-the-water entertainment from an extensive range of Apple and supported MTP (Media Transfer Protocol) enabled Android and Windows smartphones.

Three adaptor cables are included with the UNI-Dock™ (1xUSB - Apple 30Pin, 1xUSB - Apple Lightning, 1xUSB - MicroUSB) for convenient connection to the widest range of supported devices.

Not only is Fusion’s UNI-Dock™ more versatile, it also has the ‘True Marine™’ stamp, meaning it’s designed and tested especially for harsh marine environments, and rated IPx5 water resistant (from the front when correctly bulkhead mounted).

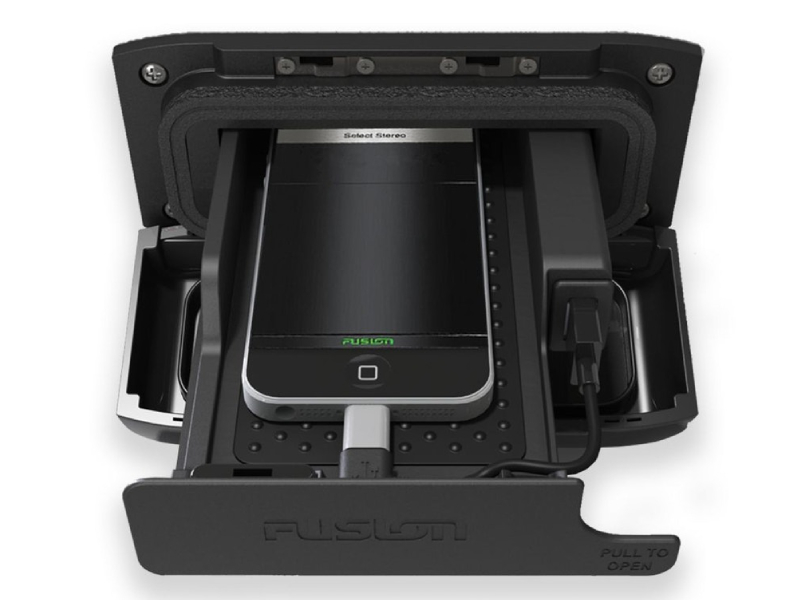

The UNI-Dock™ features a generous tray size to protect and charge a variety of devices, including the Samsung Galaxy S6 and iPhone 6s, with more products gaining compatibility constantly.

Media Device Size Limits

Maximum Device Size: 141mm (5-9/16") Length x 71mm (2-3/4") Width x 13mm (1/2") Height

The future of marine entertainment, Fusion’s UNI-Dock™, gives users unparalleled flexibility in mobile entertainment integration.

Protected by a three-year True-Marine™ warranty, Fusion Electronics’ UNI-Dock™ is the smart choice on-board.

Product Specifications
Includes 3 x adaptor cables150mm cables included for Apple 30-Pin, Apple Lightning and Micro-USB
USB Connector2M (6ft 6") USB Connection Cable
Water Resistant DesignIPx5 Water Resistant (From the front of the dock when correctly bulkhead mounted)
Dock Length179mm (7-1/16")
Dock Width157.7mm (6-3/16")
Dock Height68.7mm (2-11/16")
Mounting Depth155mm (6-1/8")
Max. Supported Device Size Length141mm (6-9/16")
Max. Supported Device Size Width71mm (2-3/4")
Max. Supported Device Size Height13mm (1/2")
