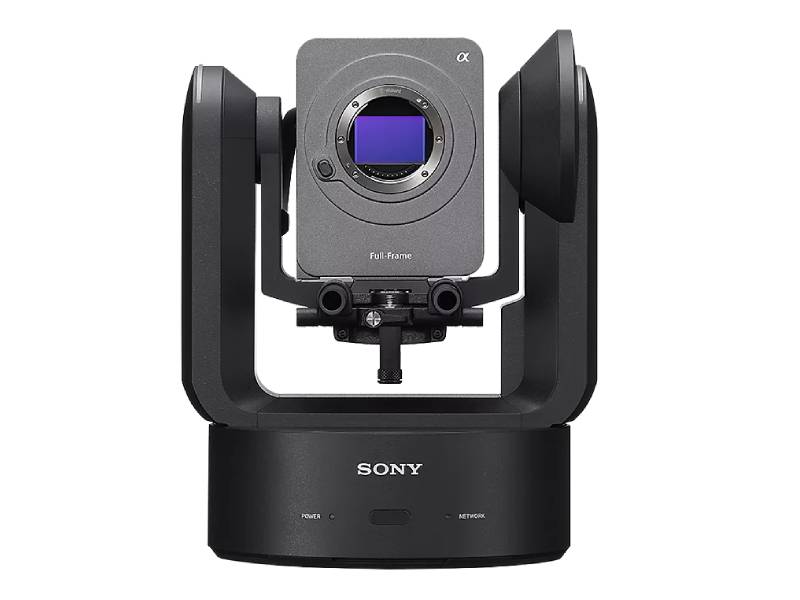

Sony FR7 Cinema Line Full Frame PTZ Camera Body Only - ILMEFR7
| $12,399.99 CAD |
Literature
Cinematography meets robotics
The FR7 provides smooth pan, tilt and zoom (PTZ) control coupled with a full-frame image sensor and a high-quality E-mount lens lineup. Focal length and shallow depth of field provide creative freedom and combine with remote PTZ control capability to open a new world of creative potential.
| Recording Frame Rate | |
|---|---|
| XAVC INTRA | XAVC-I DCI4K mode:4096 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, 24p, XAVC-I QFHD mode: 3840 x 2160/59.94p, 50P, 29.97p, 23.98p, 25p, XAVC-I HD mode: 1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p |
| Recording Format (Audio) | |
| RECORDING FORMAT (AUDIO) | LPCM 24 bits, 48 kHz, 4 channels |
| Recording Format (Video) | |
| XAVC LONG | XAVC-L QFHD 29.97p/25p/23.98p mode: VBR, MAX bit rate 100 Mbps, MPEG-4 H.264/AVC, XAVC-L QFHD 59.94p/50p mode:VBR, MAX bit rate 150 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 50 Mbps, MPEG-4 H.264/AVC, XAVC-L HD 29.97p/25p/23.98p/59.94p/50p mode: VBR, MAX bit rate 35 Mbps, MPEG-4 H.264/AVC |
| POWER | |
| POWER REQUIREMENTS | DC 19.5 V, PoE++ (IEEE802.3bt Type 4 Class 8 compliant) 41.1–57.0 V |
| POWER CONSUMPTION | ≦80 W (DC 19.5 V) / ≦71.3 W (PoE++) |
| Operation | |
| OPERATING TEMPERATURE | 32 °F to 104 °F (0 °C to 40 °C) |
| STORAGE TEMPERATURE | –4 °F to +140 °F (–20 °C to +60 °C) |
| CEILING MOUNT | Yes (with Ceiling Bracket option) |
| TALLY LAMP | Left (x1)/Right (x1), Red/Green |
| Recording Format (Video) | |
| XAVC INTRA | XAVC-I DCI4K 59.94p mode: VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 29.97p mode:VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 24p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I DCI4K 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 59.94p mode:VBR, MAX bit rate 600 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 50p mode:VBR, MAX bit rate 500 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 29.97p mode: VBR, MAX bit rate 300 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 25p mode:VBR, MAX bit rate 250 Mbps, MPEG-4 AVC/H.264, XAVC-I QFHD 23.98p mode:VBR, MAX bit rate 240 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 59.94p mode:CBG, MAX bit rate 222 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 50p mode: CBG, MAX bit rate 223 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 29.97p mode: CBG, MAX bit rate 111 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 25p mode: CBG, MAX bit rate 112 Mbps, MPEG-4 AVC/H.264, XAVC-I HD 23.98p mode: CBG, MAX bit rate 89 Mbps, MPEG-4 AVC/H.264 |
| General | |
| LENS MOUNT | E-mount |
| Size and Weight | |
| WEIGHT (MAIN UNIT ONLY) (approx.) | Approx. 10 lb 2.3 oz (4.6 kg) (body only) |
| DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.) | Approx. 8.94 x 11.38 x 9.17 inch (227 x 289 x 233 mm) (body without protrusions) |
| Recording/ Playback Time | |
| XAVC INTRA | XAVC-I DCI4K/QFHD 59.94p When using CEA-G160T (160 GB) Approx. 30 minutes When using CEA-G80T (80 GB) Approx. 15 minutes, XAVC-I DCI4K/QFHD 50p When using CEA-G160T (160 GB) Approx. 36 minutes When using CEA-G80T (80 GB) Approx. 17 minutes, XAVC-I DCI4K/QFHD 29.97p When using CEA-G160T (160 GB): Approx. 60 minutes When using CEA-G80T (80 GB) Approx. 29 minutes, XAVC-I DCI4K/QFHD 25p When using CEA-G160T (160 GB): Approx. 71 minutes When using CEA-G80T (80 GB) Approx. 35 minutes, XAVC-I DCI4K 24p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes, XAVC-I DCI4K/QFHD 23.98p When using CEA-G160T (160 GB): Approx. 74 minutes When using CEA-G80T (80 GB) Approx. 36 minutes, XAVC-I HD 59.94p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes, XAVC-I HD 50p When using CEA-G160T (160 GB): Approx. 78 minutes When using CEA-G80T (80 GB) Approx. 38 minutes, XAVC-I HD 29.97p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes, XAVC-I HD 25p When using CEA-G160T (160 GB): Approx. 150 minutes When using CEA-G80T (80 GB) Approx. 74 minutes, XAVC-I HD 23.98p When using CEA-G160T (160 GB): Approx. 185 minutes When using CEA-G80T (80 GB) Approx. 91 minutes, |
| Recording Frame Rate | |
| XAVC LONG | XAVC-L QFHD mode: 3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p, XAVC-L HD 50 mode: 1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p, XAVC-L HD 35 mode: 1920 x 1080/59.94p, 50p, 29.97p, 23.98p, 25p |
| Recording/ Playback Time | |
| PROXY VIDEO | XAVC Proxy: Advanced Video Coding/H.264 High Profile 4:2:0 Long GOP, VBR 1920 x 1080, 9 Mbps |
| PROXY AUDIO | XAVC Proxy: AAC-LC, 128 kbps, 2 channels |
| XAVC LONG | XAVC-L QFHD 29.97p/25p/23.98p When using CEA-G160T (160 GB): Approx. 170 minutes When using CEA-G80T (80 GB) Approx. 86 minutes, XAVC-L QFHD 59.94p/50p When using CEA-G160T (160 GB): Approx. 115 minutes When using CEA-G80T (80 GB) Approx. 57 minutes, XAVC-L HD 50 /29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 320 minutes When using CEA-G80T (80 GB) Approx. 155 minutes, XAVC-L HD 35 29.97p/25p/23.98p/59.94p/50p When using CEA-G160T (160 GB): Approx. 430 minutes When using CEA-G80T (80 GB) Approx. 210 minutes |
| Interface | |
| REMOTE | RJ-45 (OPTION) (x1), Red Tally IO/Green Tally IO, 3rd-party lens controllers IO |
| IR REMOTE CONTROL | Yes |
| HDMI OUTPUT | Type-A connector (x1) |
| DC INPUT | DC jack (x1) |
| SDI OUTPUT | BNC (x1), 12G-SDI, 6G-SDI, 3G-SDI(Level A/B), HD-SDI |
| AUDIO INPUT | XLR-type 5-pin (female) (x1) line/mic/mic +48 V selectable, Mic Reference: –30 to –80 dBu |
| TC INPUT/TC OUTPUT | BNC (x1), TC IN only |
| WebAPP | |
| SUPPORTED WEB BROWSERS | Windows: Google Chrome, Mac: Google Chrome/Safari, iPad: Google Chrome/Safari, Android: Google Chrome |
| SUPPORTED OPERATION SYSTEMS | Windows 10 or later, macOS 10.15 or later, iPadOS 15 or later, Android 12 or later |
| Other Features | |
| CLEAR IMAGE ZOOM | QFHD/4K: 1.5x, HD: 2x |
| PAN/TILT/ZOOM TRACE | 16 |
| CAMERA SECTION | |
| SENSOR TYPE | 35 mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor |
| Pixels | Approx. 12.9 megapixels (total), Approx. 10.3 megapixels (effective) |
| BUILT-IN OPTICAL FILTERS | Clear, linear variable ND (1/4 ND to 1/128 ND) |
| SENSITIVITY | ISO 800/12800 (Cine EI mode, D55 Light source) |
| SHUTTER SPEED | 64 frame to 1/8000 s |
| Slow and Quick Motion | |
| XAVC-I | 4096 x 2160: 1 to 60 frames (59.94/50/29.97/25/24/23.98) |
| XAVC-I/L | 3840 x 2160: 1 to 60, 100, 120 frames (59.94/50/29.97/25/23.98), 1920 x 1080: 1 to 60, 100, 120, 150, 180, 200, 240 frames (59.94/50/29.97/25/23.98) |
| White Balance | |
| WHITE-BALANCE MODES | Preset, Memory A (2,000K–15,000K)/ATW |
| Exposure | |
| GAIN CONTROL | –3 to 30 dB (every 1 dB), AGC |
| Gamma | |
| GAMMA CURVE | SDR Mode: S-Cinetone, Standard, Still, ITU709, 709 tone/HDR mode: HLG_Live, HLG_Natural |
| Latitude | |
| LATITUDE | 15+ stop |
| Focus System | |
| Type | Fast Hybrid AF (phase-detection AF / contrast-detection AF) |
| FOCUS POINT | 627 points |
| FOCUS AREA | Wide / Zone / Flexible Spot |
| OTHER FOCUS FEATURES | Eye AF (Human), Real-time Tracking AF, AF Subj. Shift Sensitivity, AF Transition Speed, Face detection (Face/Eye Priority, Face/Eye Only AF) |
| Pan/Tilt | |
| PAN/TILT ANGLE | Pan: –170 deg. to 170 deg., Tilt: –30 deg. to 195 deg., |
| PAN/TILT SPEED | Pan: 0.02 deg. to 60 deg./s, Tilt: 0.02 deg. to 60 deg./s |
| PAN/TILT OPERATION NOISE | NC35 or less |
| Other Features | |
| PRESET POSITION | 100 |
| PAN/TILT/ZOOM SYNC | Yes |
| Network/IP Streaming | |
| PROTOCOLS (IPv4) | TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, mDNS, RTP/RTCP, RTSP, VISCA over IP, SRT, NDI|HX, FTP, FTPS, S700PTP, RTMP, RTMPS |
| PROTOCOLS (IPv6) | TCP, UDP, ICMPv6, HTTP, HTTPS, DHCPv6, DNS, mDNS, RTP/RTCP, RTSP, SRT, FTP, FTPS |
| MEDIA | |
| MEDIA TYPE | CFexpress Type A / SD card (x2) |
| Interface | |
| NETWORK | RJ-45 (LAN) (x1), 1000BASE-T |
| Output Format | |
| SDI | 4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p / 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p / 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p, 29.97PsF, 25PsF |
| HDMI | 4096 x 2160: 59.94p, 50p, 29.97p, 25p, 24p, 23.98p / 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p / 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 24p, 23.98p / 720 x 480: 59.94p / 720 x 576: 50p |
| Network/IP Streaming | |
| VIDEO RESOLUTION | 4096 x 2160, 3840 x 2160, 2048 x 1080, 1920 x 1080, 1280 x 720, 640 x 360 |
| COMPRESSION FORMAT | H.264: High/Main/Baseline Profile, H.265: Main/Main10 Profile |
| MAXIMUM FRAME RATE | H.264/H.265: 59.94fps |
| BITRATE CONTROL MODE | CBR/VBR |
| BITRATE SETTING | 512 Kbps–80 Mbps |
| NDI|HX CAPABILITY | Yes, optional |
| CAMERA TRACKING DATA | free-d Type D0/D1 |
| Accessibility | |
| SCREEN READER | Yes (Language: English, Speed: 7 steps, Volume:15 steps) |
| Supplied accessories | |
| SUPPLIED ACCESSORIES | Body cap, HDMI cable fixing plate, REMOTE COMMANDER (RMT-RC1), AC Adapter, Power cord, Before Using This Unit, Warranty booklet |
| Interface | |
| OPTICAL OUTPUT | SFP+ compliant |
| GENLOCK INPUT | BNC (x1), 1.0 Vp-p, 75 Ω |
