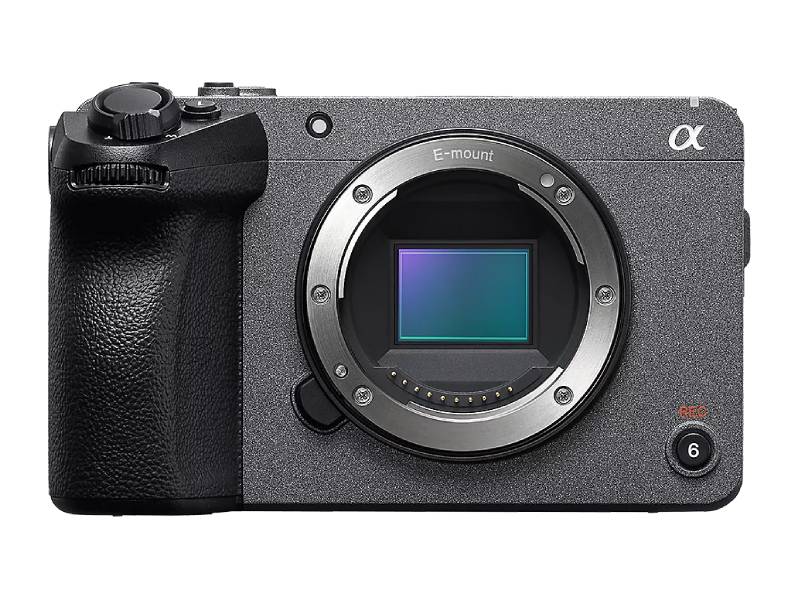

Sony FX30 Compact Cinema Line Gateway Camera Body Only - ILMEFX30B
$2,399.99 CAD |
![](https://www.donnyb.ca/files/image/attachment/22826/thumb_ILMEFX30B.jpg)
Sony FX30 Compact Cinema Line Gateway Camera Body Only - ILMEFX30B
ILMEFX30B
$2,399.99
Literature
Leap into the world of filmmaking
Sony’s acclaimed lineup of Cinema Line cameras sets the standard for filmmaking, with beautiful cinematic imagery, high performance and highly efficient workflow. Enjoy hassle-free shooting with S-Cinetone™ and S-Log3 for high-level grading plus numerous other features. The compact FX30 makes filmmaking more accessible than ever for up-and-coming creators.
Support for filmmaking
The FX30 captures stunning images with 6K oversampling and a true cinematic look. Its compact size lets you take it anywhere, and sophisticated AF and stabilization features let you concentrate on composition, not the complexity of crews and rigging.
Recording Format (Video) | |
---|---|
XAVC HS | [XAVC HS 4K] XAVC HS 4K 59.94p/50p 200 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 150 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p/23.98p 100 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 75 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 59.94p/50p 45 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 100 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 50 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 23.98p 30 Mbps 4:2:0 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 280 Mbps 4:2:2 10bit MPEG-H HEVC / H.265, XAVC HS 4K 119.88p/100p 200 Mbps 4:2:0 10bit MPEG-H HEVC / H.265 |
Operation | |
STORAGE TEMPERATURE | –4 °F to +131 °F (–20 °C to +55 °C) |
General | |
CAMERA TYPE | Interchangeable lens digital camera |
LENS MOUNT | E-mount |
Size and Weight | |
WEIGHT (MAIN UNIT ONLY) (approx.) | 1 lb 6.8 oz (646 g) (with battery and memory card included), 1 lb 3.8 oz (562 g) (body only) |
DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.) | 5.11 x 3.06 x 3.33 inches (129.7 mm x 77.8 mm x 84.5 mm) (body without protrusions) |
POWER | |
POWER CONSUMPTION | [Movie] Approx. 5.6 W (with E PZ 18–105 mm F4 OSS lens attached), [Still image] Approx. 3.5 W (with E PZ 18–105 mm F4 OSS lens attached) |
BATTERY OPERATING TIME | Approx. 115 min (Actual recording, CIPA standard) , Approx. 175 min (Continuous recording, CIPA standard), Approx. 570 shots (still images, CIPA standard) |
Operation | |
OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
Recording Format (Video) | |
XAVC S | [XAVC S 4K] XAVC S 4K 59.94p/50p 200 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 59.94p/50p 150 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p 140 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 23.98p 100 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 100 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 29.97p/25p/23.98p 60 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 280 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S 4K 119.88p/100p 200 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, [XAVC S HD] XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p/29.97p/25p/23.98p 50 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 59.94p/50p 25 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC HD 29.97p/25p 16 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 100 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, XAVC S HD 119.88p/100p 60 Mbps 4:2:0 8bit MPEG-4 AVC / H.264, |
XAVC S-I DCI | [XAVC S-I DCI 4K] XAVC S-I DCI 4K 59.94p 600 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 50p 500 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 29.97p 300 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 25p 250 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 23.98p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264, XAVC S-I DCI 4K 24.00p 240 Mbps 4:2:2 10 bit MPEG-4 AVC / H.264 |
XAVC S-I | [XAVC S-I 4K] XAVC S-I 4K 59.94p 600 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 50p 500 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 29.97p 300 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 25p 250 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I 4K 23.98p 240 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, [XAVC S-I HD] XAVC S-I HD 59.94p 222 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 50p 185 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 29.97p 111 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 25p 93 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, XAVC S-I HD 23.98p 89 Mbps 4:2:2 10bit MPEG-4 AVC / H.264, |
Recording/ Playback Time | |
XAVC HS | [XAVC HS 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80 GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80 GB) Approx. 50 minutes, 59.94p/50p 100M When using CEA-G160T (160 GB) Approx. 150 minutes, When using CEA-G80T (80 GB) Approx. 75 minutes, 59.94p/50p 75M When using CEA-G160T (160 GB) Approx. 190 minutes, When using CEA-G80T (80 GB) Approx. 95 minutes, 59.94p/50p 45M When using CEA-G160T (160 GB) Approx. 290 minutes, When using CEA-G80T (80 GB) Approx. 140 minutes |
Recording Frame Rate | |
XAVC S-I DCI | [XAVC S-I DCI 4K] 4096 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, 24.00p |
XAVC S-I | [XAVC S-I 4K] 3840 x 2160/59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p, |
XAVC S | [XAVC S 4K] 3840 x 2160/119.88p, 100p, 59.94p, 50p, 29.97p, 25p, 23.98p, [XAVC S-I HD] 1920 x 1080/59.94p, 50p, 29.97p, 25p, 23.98p |
XAVC HS | [XAVC HS 4K] 3840 x 2160/119.88p, 100p, 59.94p, 50p, 23.98p |
Recording Format (Audio) | |
RECORDING FORMAT (AUDIO) | LPCM 2ch (48 kHz 16 bit), LPCM 2ch (48 kHz 24 bit), LPCM 4ch (48 kHz 24 bit), MPEG-4 AAC-LC 2ch |
CAMERA SECTION | |
Pixels | Approx. 20.1 megapixels (effective) for movies, Approx. 26.0 megapixels (effective) for Still images, Approx. 27.0 megapixels (total) |
Other Video Function | |
VIDEO FUNCTIONS | Audio Level Display, Audio Rec Level, TC/UB, Creative Look, Gamma Display Assist, PAL/NTSC Selector |
CAMERA SECTION | |
SENSOR TYPE | APS-C type (23.3 x 15.5 mm), Exmor R CMOS sensor |
Recording/ Playback Time | |
PROXY AUDIO | XAVC Proxy: AAC-LC, 128 kbps, 2 channels |
PROXY VIDEO | 1280 x 720 (Approx. 6 Mbps), 1920 x 1080 (Approx. 9 Mbps), 1920 x 1080 (Approx. 16 Mbps) |
RAW Output | |
RAW Output | HDMI: 4672 x 2628 (59.94p/50p/29.97p/25p/23.98p), 16 bit |
Recording/ Playback Time | |
XAVC S-I DCI | [XAVC S-I DCI 4K] 59.94p/50p When using CEA-G160T (160 GB) approx. 25 minutes, when using CEA-G80T (80 GB) approx. 10 minutes |
XAVC S-I | [XAVC S-I 4K] XAVC S-I 4K 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80 GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p/50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80 GB) Approx. 35 minutes |
XAVC S | [XAVC S 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 80 minutes, When using CEA-G80T (80 GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 100 minutes, When using CEA-G80T (80 GB) Approx. 50 minutes, [XAVC S HD] 59.94p/50p 50M When using CEA-G160T (160 GB) Approx. 270 minutes, When using CEA-G80T (80 GB) Approx. 130 minutes, 59.94p/50p 25M When using CEA-G160T (160 GB) Approx. 430 minutes, When using CEA-G80T (80 GB) Approx. 210 minutes |
Slow and Quick Motion | |
XAVC S | XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps |
XAVC HS | XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps |
CAMERA SECTION | |
SHUTTER SPEED | [Movie] 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode), [Still image] 1/8000 to 30 s |
SENSITIVITY | [Movie] ISO 100–32000 equivalent, AUTO (ISO 100–6400, selectable lower limit and upper limit), [Still image] ISO 100–32000 (Expandable to ISO 50–102400), AUTO (ISO 100–6400, selectable lower limit and upper limit) |
Focus System | |
Type | Fast Hybrid AF (phase-detection AF / contrast-detection AF) |
Latitude | |
LATITUDE | 14+ stop (S-Log3) |
Gamma | |
GAMMA CURVE | Off / PP1-PP6 / PP10-PP11, Parameters: Black level, Gamma (Movie, Still, S-Cinetone, Cine1-4, ITU709, ITU709 [800%], S-Log3, HLG, HLG1-3), Black Gamma, Knee, Colour Mode, Saturation, Colour Phase, Colour Depth, Detail, Copy, Reset |
White Balance | |
WHITE-BALANCE MODES | Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Underwater / Colour Temperature (2,500 to 9,900 K) and colour filter / Custom |
Slow and Quick Motion | |
XAVC S-I | XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps[NF_39], XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps |
Interface | |
SPEAKER OUTPUT | Built-in, monaural |
HDMI OUTPUT | HDMI jack (Type-A), YCbCr 4:2:2 10 bit / RGB 8 bit |
MULTI INTERFACE SHOE | With Digital Audio Interface |
USB | USB Type-C® (x1, SuperSpeed USB 10 Gbps (USB 3.2) compatible), Multi/Micro USB (x1) |
HEADPHONE OUTPUT | Yes (3.5 mm Stereo minijack) |
AUDIO INPUT | 3.5 mm Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR/TRS-type 3-pin (female) (x2), line/mic/mic +48 V selectable, Mic Reference –40 to –60 dBu / [INPUT3] 3.5 mm Stereo minijack) |
TC INPUT/TC OUTPUT | Multi/Micro USB, TC IN |
Playback | |
PLAYBACK FUNCTIONS | Index view, Folder selection (Date / Still / Movie), Photo capture, 4ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills) |
Recording (Still image) | |
IMAGE SIZE | Image size [3:2] L: 6192 x 4128 (26M), M: 4384 x 2920 (13M), S: 3104 x 2064 (6.4M) [4:3] L: 6192 x 4128 (26M), M: 4384 x 2920 (13M), S: 3104 x 2064 (6.4M) [16:9] L: 6192 x 4128 (26M), M: 4384 x 2920 (13M), S: 3104 x 2064 (6.4M) [1:1] L: 4128 x 4128 (17M), M: 2912 x 2912 (8.5M), S: 2064 x 2064 (4.3M) |
RECORDING FORMAT | JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant) |
Exposure Control | |
EXPOSURE MODES | [Movie] [Movie] Programmed AE (P) / Aperture priority (A) / Shutter priority (S) / Manual Exposure (M) / Flexible Exp. Mode, [Still images] Intelligent Auto (Auto) / Program Auto (P) / Aperture priority (A) / Shutter priority (S) / Manual Exposure (M) |
METERING SENSITIVITY | EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached) |
FTP Transfer | |
FTP Transfer | Wired LAN (USB-LAN), USB Tethering, Wi-Fi |
Supplied accessories | |
SUPPLIED ACCESSORIES | Rechargeable Battery NP-FZ100, AC adapter, Body cap, Accessory shoe cap, USB-A to USB-C cable (USB 3.2) |
Wi-Fi/NFC | |
SECURITY | WEP/WPA-PSK/WPA2-PSK |
FREQUENCY BAND | 2.4 GHz band/5 GHz bandwidth |
SUPPORTED FORMAT | IEEE 802.11a/b/g/n/ac |
Lens Compensation | |
LENS COMPENSATION | Peripheral Shading, Chromatic Aberration, Distortion, Breathing (Movie) |
Custom function | |
CUSTOM FUNCTION | Custom key settings, My Menu, My Dial Settings, Reg. Custom Shoot Set |
Interface | |
Bluetooth | Bluetooth Standard Ver. 5.0 (2.4 GHz band) |
MEDIA | |
MEDIA TYPE | CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy |
Monitoring | |
LCD | 3.0-type (7.5 cm), Approx. 2.36M dots, touch panel, Opening Angle: Approx. 176 deg., Rotation Angle: Approx. 270 deg. |
Built-in Microphone | |
BUILT-IN MICROPHONE | Built-in, stereo |
File System | |
FILE SYSTEM | FAT12, 16, 32, exFAT |
Zoom | |
ZOOM FUNCTION | Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] L: Approx. 2x, M: Approx. 2.8x, S: Approx. 4x), Digital zoom ([Movie] Approx. 4x [Still image] L: Approx. 4x, M: Approx. 5.7x, S: Approx. 8x), Smart zoom ([Still image] M: Approx. 1.4x, S: Approx. 2x) |
Still image function | |
SHUTTER | Electronic shutter |
DRIVE MODES | Single Shooting, Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket |
NOISE REDUCTION | High ISO NR: Normal / Low / Off |
OTHER STILL IMAGE FUNCTION | Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot |
Image Stabilization | |
Type | Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications) |
MODE | [Movie] Active / Standard / Off, [Still image] On / Off |
COMPENSATION EFFECT (STILL IMAGES) | 5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50 mm F1.4 ZA lens mounted.) |
Focus System | |
FOCUS POINT | [Movie] 495 points (phase-detection AF), [Still image] 759 points (phase-detection AF) |
SENSITIVITY RANGE | EV-3 to EV20 (ISO100 equivalent with F2.0 lens attached) |
FOCUS MODE | [Movie] AF-C (Continuous AF), MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus |
FOCUS AREA | [Movie] Wide / Zone / Centre Fix / Spot / Expand Spot [Still image] Wide / Zone / Centre Fix / Spot / Expand Spot / Tracking |
OTHER FOCUS FEATURES | Eye AF ([Movie] Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird), ([Still images] Human (Right/Left Eye Select) / Animal (Right/Left Eye Select) / Bird), Face detection (Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still image] Focus Magnifier (APS-C: 6.1x / 12.1x) |
